Formally known as the BAS folding seats, these jump seats are a proven design and have been in production since 1979. They are STC approved for Cessna models 170, 172, 175, 180, 182, and 185. The seat assemblies are constructed of welded 4130 Chromoly Steel tubing, power coated black. The seat frames are covered with 3.4 oz. Poly-Fiber fabric for durability. They can be used as-is, or covered with a secondary lightweight upholstery to match the rest of your aircraft's interior.  Each seat weighs 5 1/2 pounds. This compares to 29 pounds for the traditional bench seat.  Installation can be done in 8 - 12 hours for both seats by an experienced mechanic.


Key Benefits:

--Lighter weight than standard seats means higher useful load. (11 lb. plus upholstry)
--Seats stow tight against the fuselage side, greatly increasing cargo space.
--Each seat removes with two bolts. Bench seat can be reinstalled with no modifications.
--Seats are comfortable and fit in same fore and aft location as the OEM bench seat.
--MADE IN THE USA

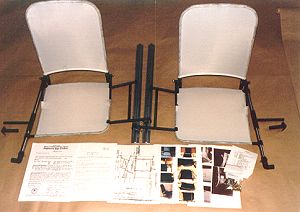

Typical Seat Kit Contents

Pricing:

Single Seat: $1850. For model 182E and newer: $1975

Pair of Seats: $3600.  For model 182E and newer: $3850.  (includes shipping in the U.S. lower 48 states, call or email for other locations )

Seat belt attach option kit:  $250.  This includes 4 attach brackets that rivet between the skin and bulkhead (same as late model 180-185).  Included in the STC approval. Call me for details.

All prices in U. S. dollars.  Extra for foreign shipments requiring an Export Certificate of Airworthiness.

Payment: Credit Cards accepted for PayPal.  You do not need a PayPal account.  $100 discount for paying by check.   Call 712-320-9751 or text or email for more information.



Notes:
**Early model aircraft had seat belts attached directly to the bench seat. In these applications, late model seat belt attach hardware may have to be installed. We can provide that hardware if needed. Later model aircraft require no changes.

Shipping requirements: I need the model of Cessna, registration (N) number, serial number, owner's name, address, phone number, and shipping address.  Call , text, or email for special cases or questions.
